The modular wall system made of wood
Smart Bricks are prefabricated cross-layer solid wood modules that can be assembled like a plug-in system for exterior walls and load-bearing or non-load-bearing interior walls. The system has already been successfully installed in over 110,000 m² of wall space and is suitable for single-family homes, multi-storey residential buildings and applications in the agricultural, commercial and municipal sectors.
Click here for the products:

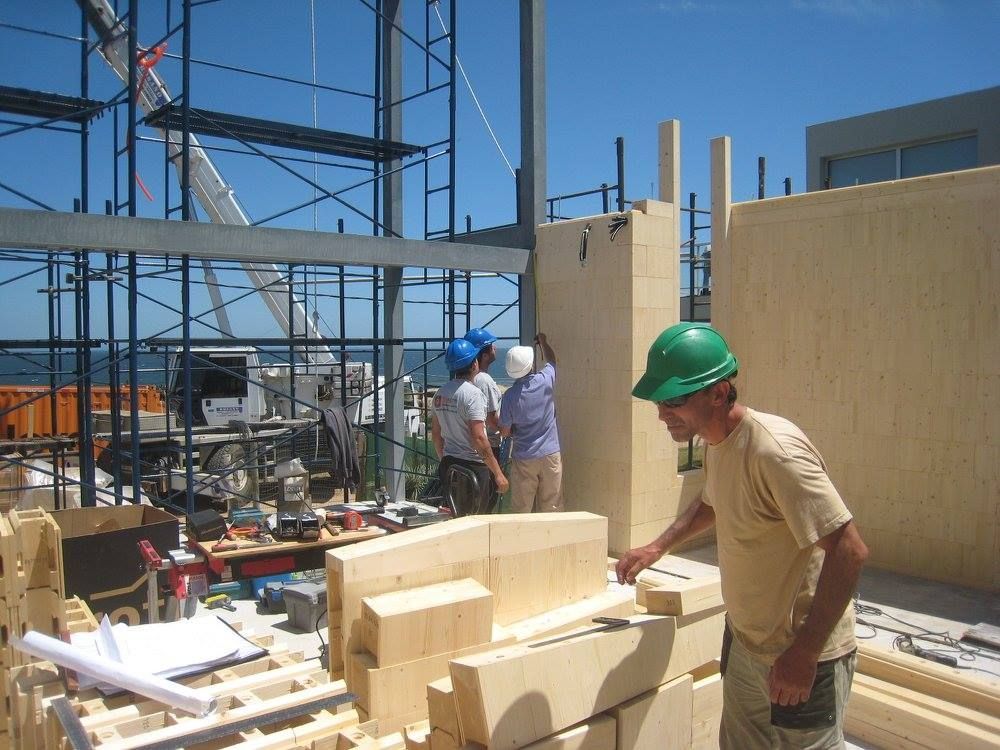

In the video you can see the construction of a house in Switzerland with our Smart Brick.
The house has a construction area of 230 m². A total of 615 m² of SmartBrick wooden blocks were used for the walls, plus 435 m² of floor/ceiling elements and roof structures.
This house was built in just 16 days.
The building system consists of precisely coordinated modules that are joined together in layers to form walls. A special plug-in bond ensures stability – even at corners and wall connections. Cables can be laid in the integrated cavities, and coordinated modules for sleepers, lintels and closures round off the system. Due to the small size and low weight, delivery is also possible to construction sites that are difficult to access without truck access.
The system also meets high technical requirements: With our standard wall structure, which consists of an ETICS system, the unfilled smart brick and an internal plasterboard/gypsum fibreboard, we achieve a sound insulation of Rw > 47 dB. For increased sound insulation requirements, a wall structure with an internal facing shell can be used, which achieves a sound insulation of > 55 dB. Fire protection is at REI30 and above. Up to five-storey buildings can be erected from the smart bricks.
Highlights at a glance:
• over 110,000 m² of successfully installed wall space;
• modular plug-in system with few components;
• for single-family houses, multi-storey residential buildings, also commercial & agricultural;
• easy installation;
• delivery also possible without truck access;
• high sound insulation: up to Rw = 48 dB;
• fire protection REI30+;
• up to 5 full storeys in combination with Smart-Floor.
A product that builds the future – natural and global
In a world where smarter, faster and more sustainable construction is no longer an option, but a necessity, our Smart Bricks stand out – through a combination of innovation, simplicity and nature.
Made of high-quality wood, these building blocks are designed for use in all weather conditions – from humid tropics to icy alpine climates.
Their design is not only durable and energy-efficient, but also surprisingly easy to work with. Construction companies, architects, and developers across Europe and Latin America use these blocks for their simplicity and reliability.
Whether it's a cosy mountain hut, an urban eco-house or a multi-storey residential building – these building blocks meet local requirements.
Their secret? A combination of the best properties of nature and CE-certified production techniques – the result is a sustainable building material.
The result: shorter construction times and healthier living spaces – all over the world.
View photos of our worldwide projects.
Smart Bricks are the ideal solution for anyone who wants to build sustainably, efficiently and systematically – clearly structured, high-quality, flexible and with decades of experience in the background.
