The versatile ceiling element
Product Group:
FLOOR
Product:
SMART FLOOR
Description:

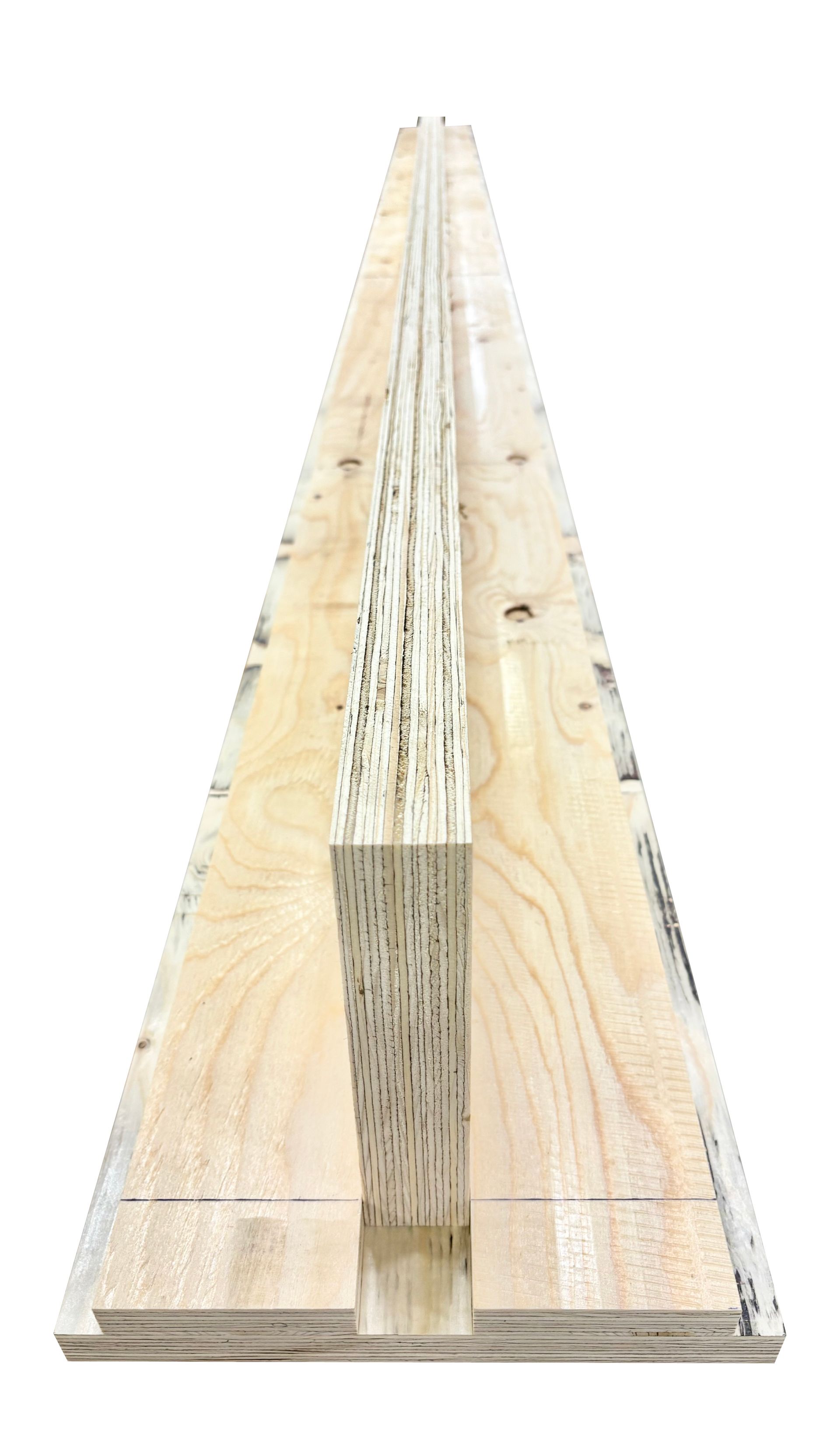

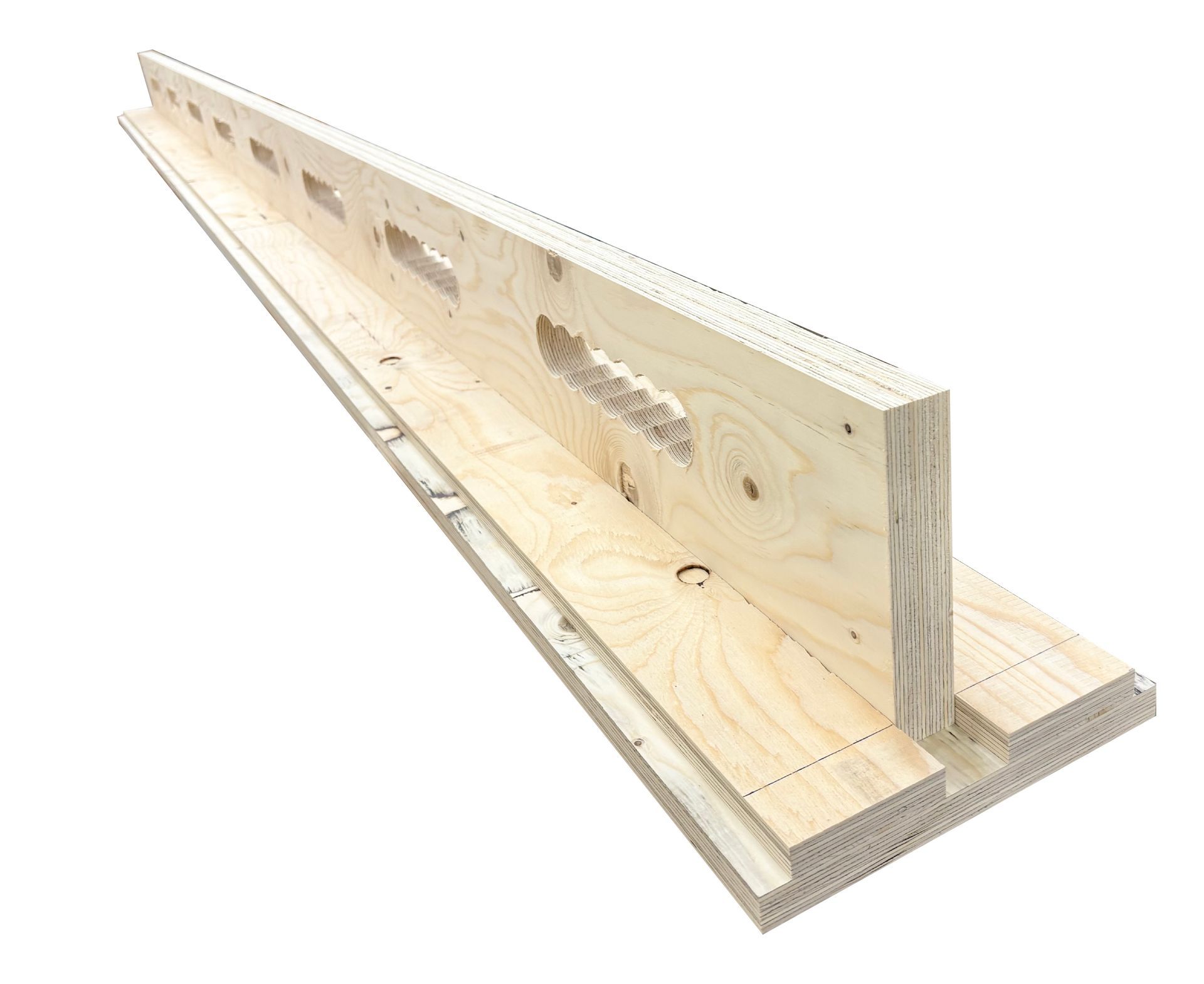

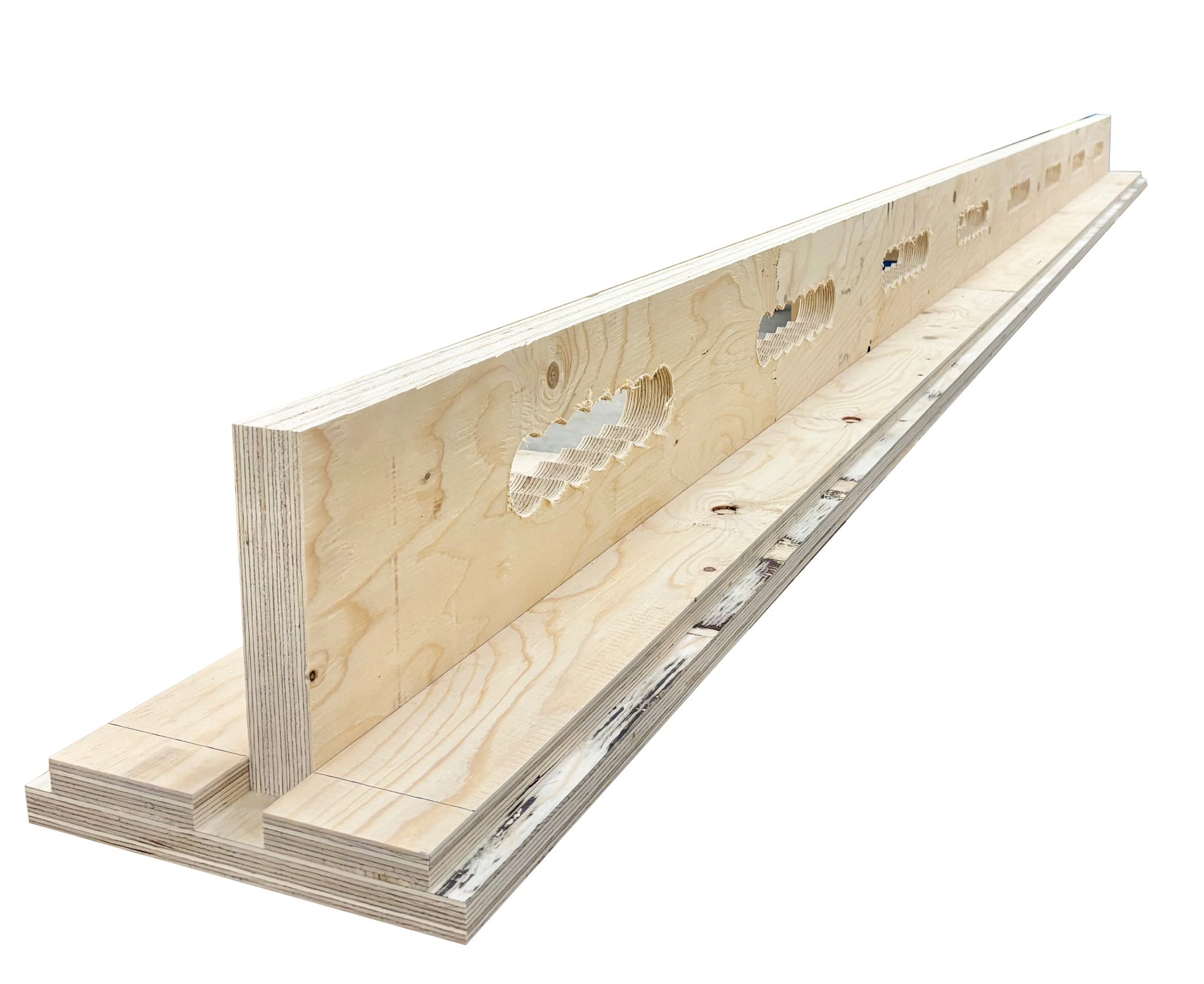

The Smart-Floor is a modular wooden ceiling. This consists of the core product LVL T-rib, as well as the complementary products LVL L-rib, static LVL end boards and spacers. The ceiling is closed on the underside with a surface-forming material plate on site. The cavity between the ribs is filled on site with filling material (e.g. insulation, concrete, ...). The construction site-specific floor construction is carried out on the ribs.
The dimensioning of the rib and the static end boards is based on the static design.
Smart floor: The intelligent concrete-timber hybrid storey ceiling
Discover Smart-Floor, our innovative wood-concrete hybrid storey ceiling that combines the best of two worlds: the sustainability of wood and the stability of concrete. This forward-looking floor slab revolutionises the construction process and sets new standards in terms of efficiency, ecology and stability.
Your advantages with Smart-Floor
- No beam when concreting: Our smart floor elements are designed to be self-supporting. This means that you can completely dispense with complex and expensive supports during concreting. This not only saves time and material, but also simplifies the entire construction process considerably.
- No steel: Thanks to our innovative design, we do not need steel reinforcement. The special combination of wood and concrete ensures an extremely high load-bearing capacity and rigidity, without the need for steel mesh.
- Sustainability through recycled concrete: We focus on sustainability. Our elements can be filled with up to 85% recycled concrete, which allows us to conserve valuable resources and significantly reduce the ecological footprint of your construction project.
- Fast assembly: The prefabricated wooden elements are placed quickly and precisely on the construction site. The subsequent concreting process completes the slab in the shortest possible time.
Smart-Floor is the ideal solution for anyone looking for an
efficient, sustainable and cost-saving storey ceiling. Perfect for residential and commercial buildings, our hybrid ceiling offers a unique combination of stability, flexibility and environmental awareness.
